UL2468
Product Detail
UL2468 FLAT RIBBON WIRE 排线
UL /CUL File NO.：E328303
|
PRODUCT DESCRIPTION
|
说明：
|
|
Rated temperature:-20℃～80℃
|
额定温度：-20℃～80℃
|
|
Rated voltage： 300V
|
额定电压：300V
|
|
Reference standard:UL subject 758、1581
|
标准：UL758、UL1581
|
|
Tinned or bare,stranded or solid
|
导体使用34~10AWG单根或绞合
|
|
Copper conductor 34~10AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1垂直燃烧试验
|
|
Vertical flame test
|
|
|
Environmental protectionPVC insulation
|
环保聚氯乙烯（PVC）绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
|
|
|
APPLICATION
|
应用
|
|
For internal wiring of appliances and
|
用于电器及电脑设备内部连接线
|
|
computers
|
|
|

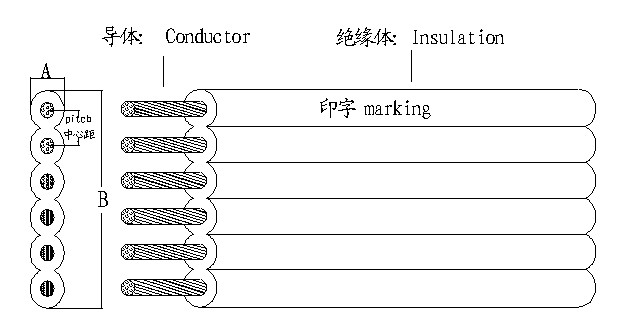

CABLE CONSTRUCTION
|
电线结构
|
印字内容：
|
2C 3C 4C 5C 6C 7C 8C 9C 10C 11C 12C
|
|
— × – · ︱ ＋ –— –× ︱– –＋ —×
|
